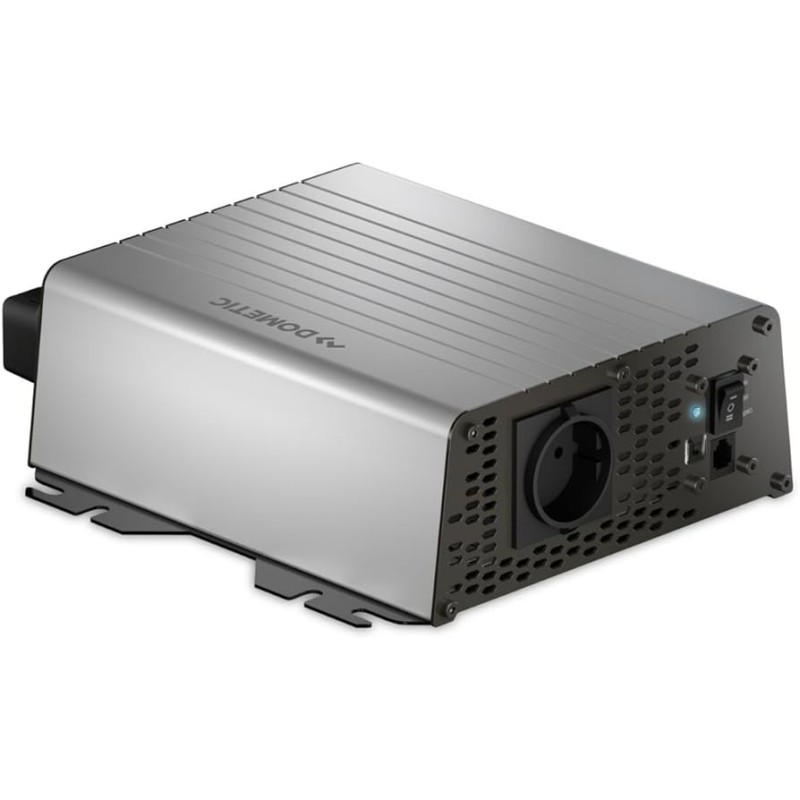

The Dometic DSP612 sine wave inverter is a compact converter designed to convert 12 V battery power into clean 230 V AC power. Ensures reliable operation of up to 600 W of electrical equipment from the vehicle battery. Integrated protection circuits prevent damage due to overloading, overheating, over- and undervoltage. Automatic standby mode saves energy.
- Pure sine wave 230 V AC output voltage suitable for sensitive electronic equipment.
- Energy-saving standby mode with automatic wake-up function.
- Easy to install in horizontal or vertical position
- Automatic restart in case of overload, over or undershooting
- Silent fan with load and temperature regulation
- Remote control is standard equipment
Dimensions Product depth, [mm] 220
Dimensions product height, [mm] 80
Product width dimensions, [mm] 230
Weight, [kg] 2.80
Input voltage (DC), [V] 12
Output voltage, [V] 230
Current consumption - zero load, [A] 0.8
Power consumption - standby, [mA] 300
Energy efficiency, [%] >90
Continuous power 25°C, [W] 600
Operating temperature min, [°C] 0
Maximum operating temperature [°C] 50
